| Physical Characteristics | |
| Dimensions | 250.8 x 152.0 x 15.0 mm / 9.87 x 5.98 x 0.59 in. ( for standard version ) |
| Weight | 680 g / 23.99 oz. ( for standard version ) |
| Display | 8'' IPS LTPS 1920 x 1200 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Main battery: Li-ion, rechargeable, 8700 mAh Standby: over 500 hours Continuous use: over 10 hours (depending on user environment) Charging time: 5-7 hours (with standard AC adaptor and USB cable) |
| Notification | Sound, LED indicator |
| Expansion Slot | 1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots |
| Interfaces | USB 2.0 Type-C, OTG |
| Audio | 1 microphone; 1 speaker |
| Keypad | 1 front key, 1 volume key, 1 power key, direction key (Optional) |
| Sensors | Gravity sensor; gyroscope; geomagnetic sensor; light / proximity sensor |
| Communication | |
| WLAN | Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128, 132,136,140,144,149,153,157,161,165),Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPIPSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAPGTC,etc. |
| WWAN | 2G: 850/900/1800/1900MHz, GPRS, EDGE 3G: CDMA EVDO: BC0 WCDMA: B1/B2/B5/B8 4G: TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28 |
| Bluetooth | Bluetooth 5.1 |
| Vo-LTE | Support Vo-LTE HD video voice call |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna |
| Developing Environment | |
| Operating System | Android 13; GMS&AER, 90-day security updates, FOTA, Soti MobiControl, SafeUEM supported |
| SDK | Chainway Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| Performance | |
| CPU | Octa-core, 2.0GHz; GMS&AER |
| RAM+ROM | 4GB + 64GB |
| Expansion | Supports up to 256GB Micro SD card |
| User Environment | |
| Operating Temp. | -4 °F to 122 °F / -20 °C to 50 °C |
| Storage Temp. | -40 °F to 158 °F / -40 °C to 70 °C |
| Humidity | 5% RH - 95% RH non condensing |
| Drop Specification | Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range |
| Tumble Specification | 500 x 0.5 m / 1.64 ft falls at room temperature |
| Sealing | IP65 per IEC sealing specifications |
| ESD | ±15 KV air discharge, ±8 KV conductive discharge |
| Barcode Scanning | |
| Scan engine | Zebra SE4710; Honeywell HS7 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch, Postal (KIX), etc. |
| Note | * This function is optional |
| UHF RFID | |
| Engine | CM710-1 module based on Impinj E710 |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular polarization (3 dBi) |
| Power | 1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33dBm, for Latin America, etc.) R/W |
| Fastest Read Rate (circular polarization) | 900+ tags/sec |
| Max Read Range | Up to 10 m (open outdoors, Impinj MR6 tag); |
| Note | * Ranges and rates depend on tags and environment. * This function is optional |
| Fingerprint 1 | |

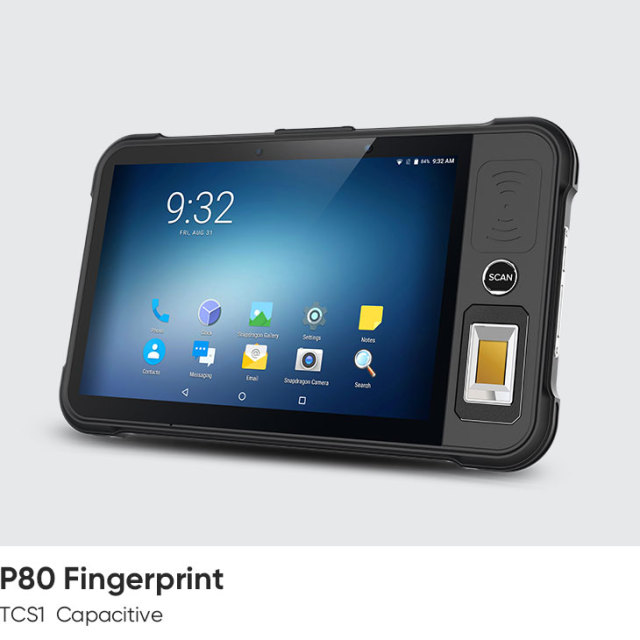

| Sensor | TCS1 Capacitive |
| Sensing Area (mm) | 12.8 × 18.0 |
| Resolution (dpi) | 508 dpi, 8-bit greylevel |
| Certifications | FIPS 201, STQC |
| Format Extraction | ISO 19794, WSQ, ANSI 378, JPEG2000 |
| Fake Finger Detection | Support by SDK |
| Security | AES, DES key encryption of the host communicationchannel |
| Note | * This function is optional |
| Fingerprint 2 | |
| Sensor | TLK1NC02 |
| Sensing Area (mm) | 14.0 X 22.0 |
| Resolution (dpi) | 508dpi, 256-bit greylevel |
| Certifications | FIPS 201, FBI |
| Format Extraction | ISO19794, WSQ, ANSI 378, JPEG2000 |
| Fake Finger Detection | Support by SDK |
| Security | AES, DES key encryption of the host communicationchannel |
| Note | * This function is optional |
| Fingerprint 3 | |
| Sensor | Optical Morpho CBM-E3 |
| Sensing Area (mm) | 14.0 X 22.0 |
| Resolution (dpi) | 500 dpi, 256 greylevel |
| Certifications | FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201complaint, STQC |
| Format Extraction | ISO 19794-2/4, WSQ, ANSI 378, etc |
| Fake Finger Detection | Latex, GeLatin, Plasticine, Kapton, Transparent Film,Silicone, Rubber, Play-doh, Graphite Or Paper |
| Security | FIPS 140-2 level 2, multiple security methods available,including image and templates encryption, templatesignature, secure tunneling, etc. |
| Note | * This function is optional |
| Camera | |
| Front Camera | 5 MP |
| Rear Camera | 13 MP Autofocus with flash |
| NFC | |
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 0-4 cm |
